Hartley Plan Specs

  • 3,413

    HEATED S.F.

  • 5

    BEDS

  • 5.5

    BATHS

  • 3

    FLOORS

  • 2

    CAR GARAGE

Regular price $2,950.00

Coastal Vacation Home with Oversized Bunk Room

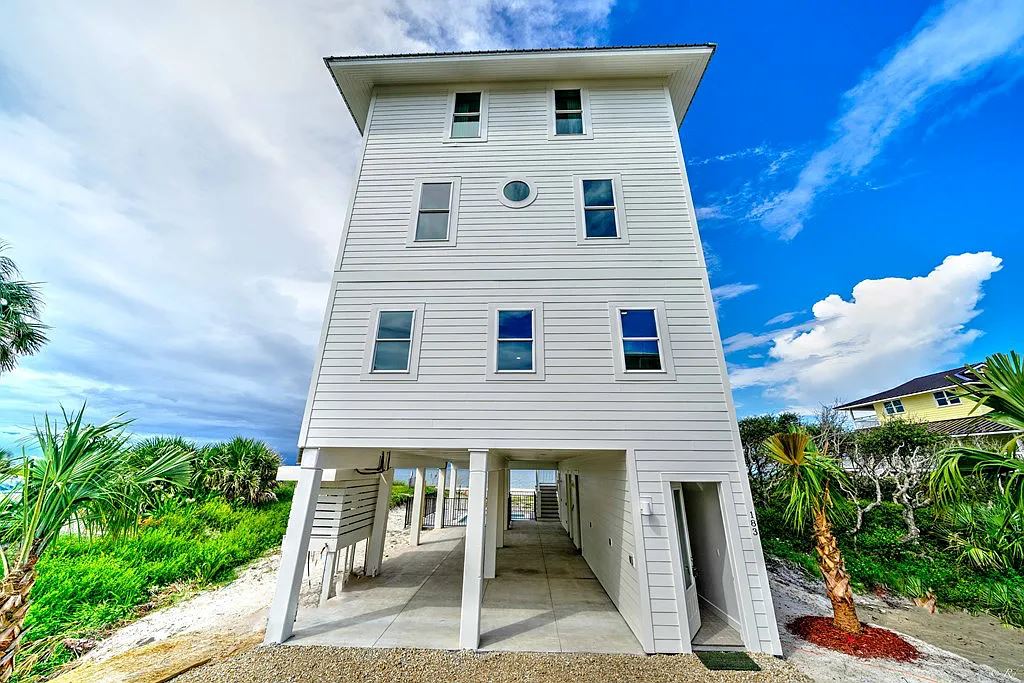

  • Built on elevated pilings, this coastal vacation home is designed to take advantage of the views while also being protected from the elements.

  • Spread across three floors, this home design features three primary suites perfect for large families or groups of guests.
  • With an elevator reaching all floors, this floor plan is ADA accessible and allows for easy transport of groceries and goods from your car into the home.

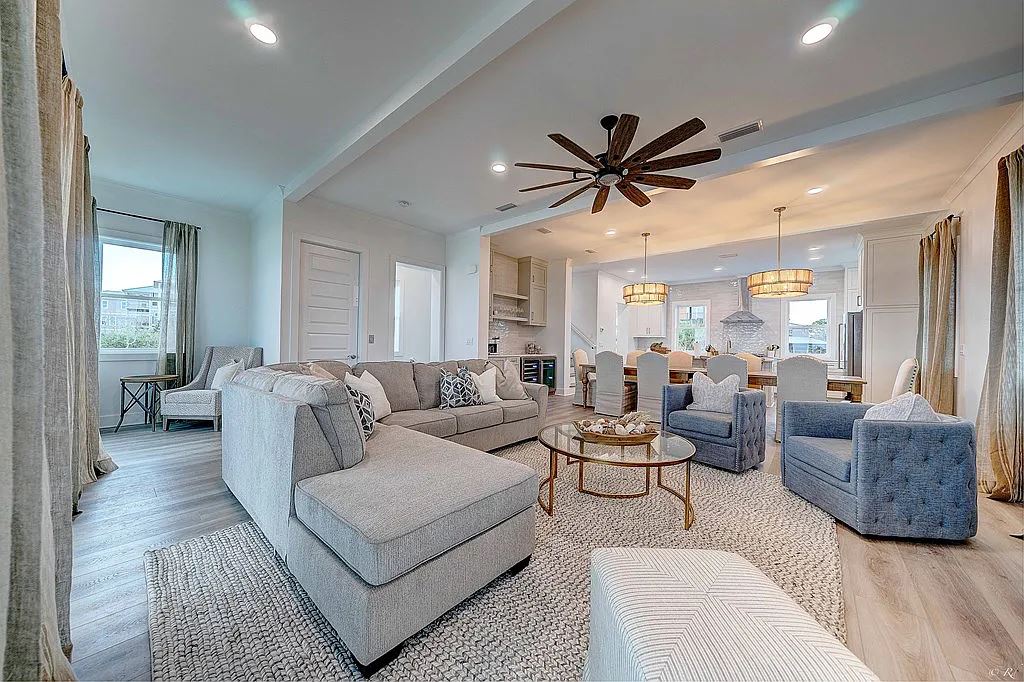

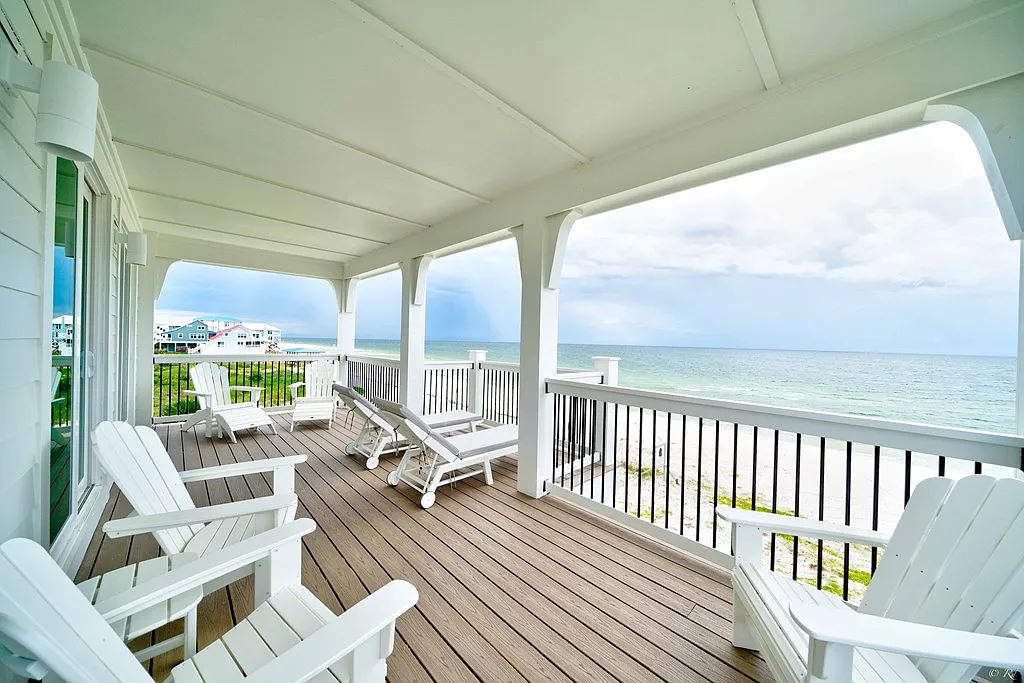

  • On the main floor, you have a large expansive open living space, with a wet bar, a covered porch, and a walk-in pantry.

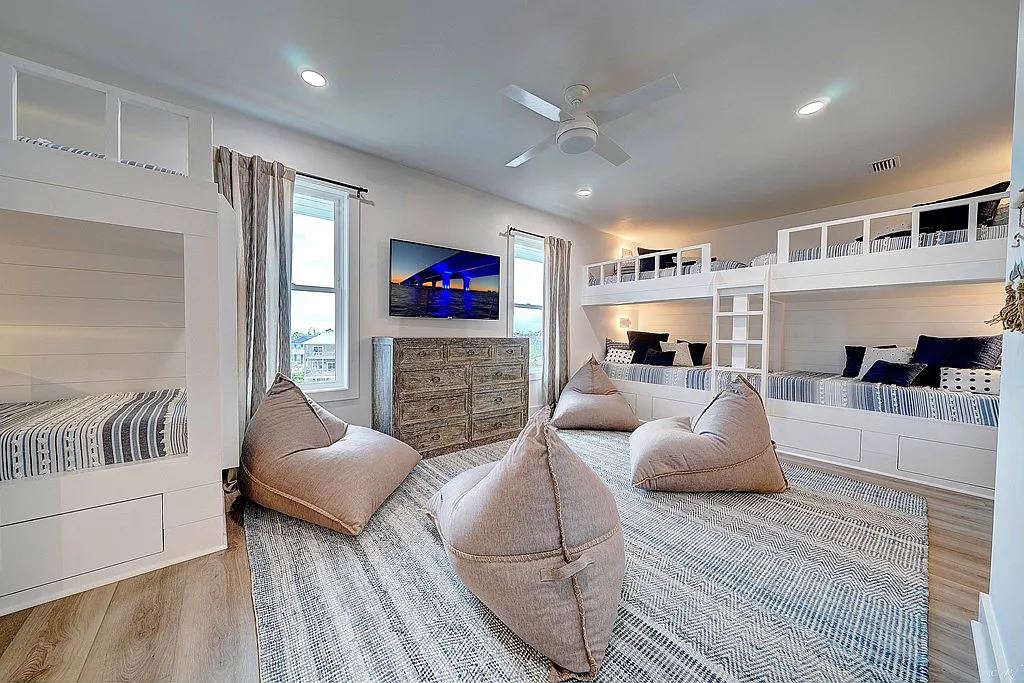

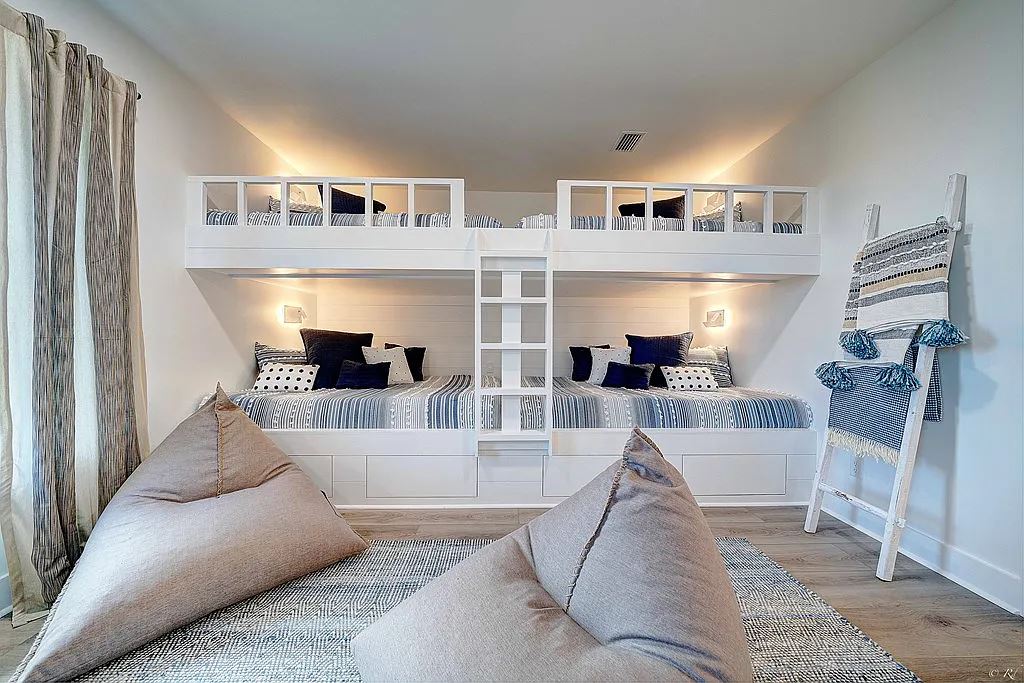

  • On the top floor, a large oversized bunk room/family room is designed to fit four bunkbeds, capable of sleeping eight, and an oversized sectional sofa.

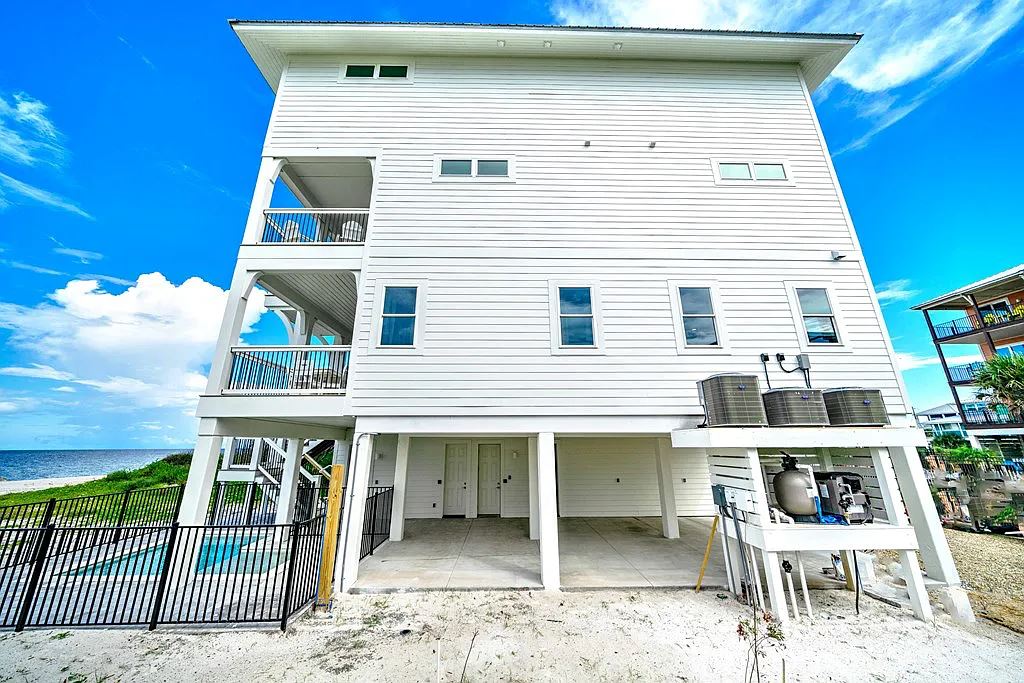

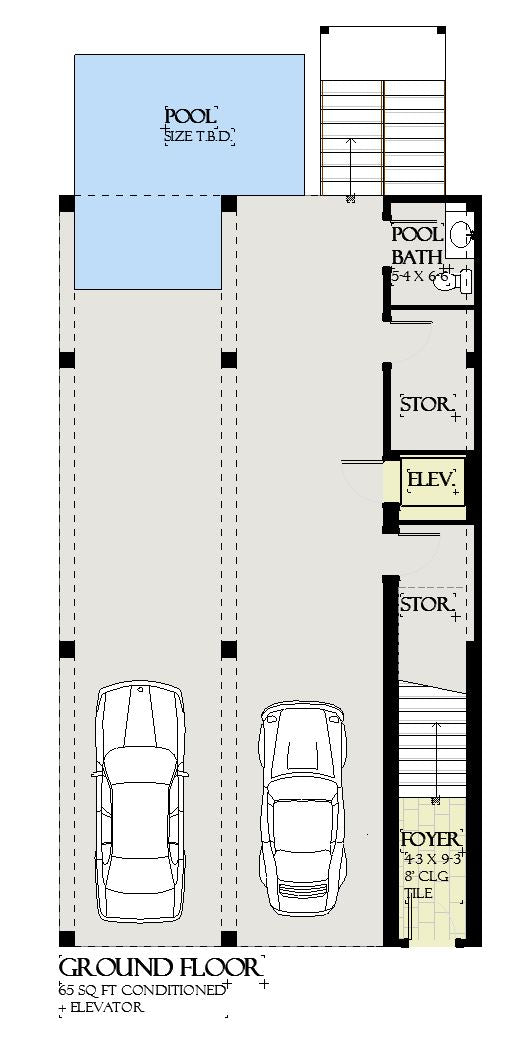

  • On the ground floor, a covered parking area will fit four vehicles or a mix of cars and boats. A pool-level bathroom makes staying outdoors and enjoying your surroundings easy.



MODIFY THIS PLAN



Full Specs & Features

Dimension

Depth: 48'

Width: 27'

Height: 51' 8"

Area

Main Floor: 1026 sq/ft

Upper Floor: 1026 sq/ft

Optional Lower Floor: 65 sq/ft

Total Living Area: 3413 sq/ft

Roof

Roof Framing: Truss

Primary Pitch: 8/12

Exterior Wall Framing

Framing: 2x6

Foundation Type

Pilings

Ceiling Heights

Main Ceiling: 10'

Upper Ceiling: 9'

Lower Ceiling: 9'

Bonus Ceiling: 9'

Bedroom Features

Primary Suite

Guest Suite

Walk-In Closet

Upstairs Bedrooms

Kitchen Features

Walk-In Pantry

Kitchen Island

Wet Bar

Additional Room Features

Second Floor Laundry

Hobby Rec Room Game Room

Den Office Study Computer Room

Owners Closet

Family Room

Garage Features

Rear Entry Garage

Lot Characteristics

Suited for Lot with View

Suited for Corner Lot

Suited for Sloping Lot

Outdoor Spaces

Grill Deck Sundeck

Covered Front Porch

Covered Rear Porch

Swimming Pool
