Sherwood

Name: Sherwood
Brand: SketchPad House Plans
SKU: Sherwood-pdf-download-mirror
Price: 2875.0 USD
Availability: InStock

$2,875.00

Title:

PDF Download

PDF Download CAD DWG Download Printed 5 Copy Set

Optional Add On:

Mirror Reverse Plan Sets (+ $175.00)

Mirror Reverse Plan Sets (+ $175.00) 2x6 Wall Conversion (+ $150.00) None (+ $0.00)

Variant

Plan Set Types

PDF Download

PDF plan sets are fast electronic delivery and inexpensive for local printing
The print-ready PDF file will be emailed to you upon purchase

CAD DWG Download

For use by design professionals to make substantial changes to your house plan
The DWG file will be emailed to you upon purchase

Printed 5 Copy Set

5 hard copy plan sets mailed (shipping Included) to your door

What's Included

Title Sheet

Plan rendering
Page index of complete set and total square footage of the home

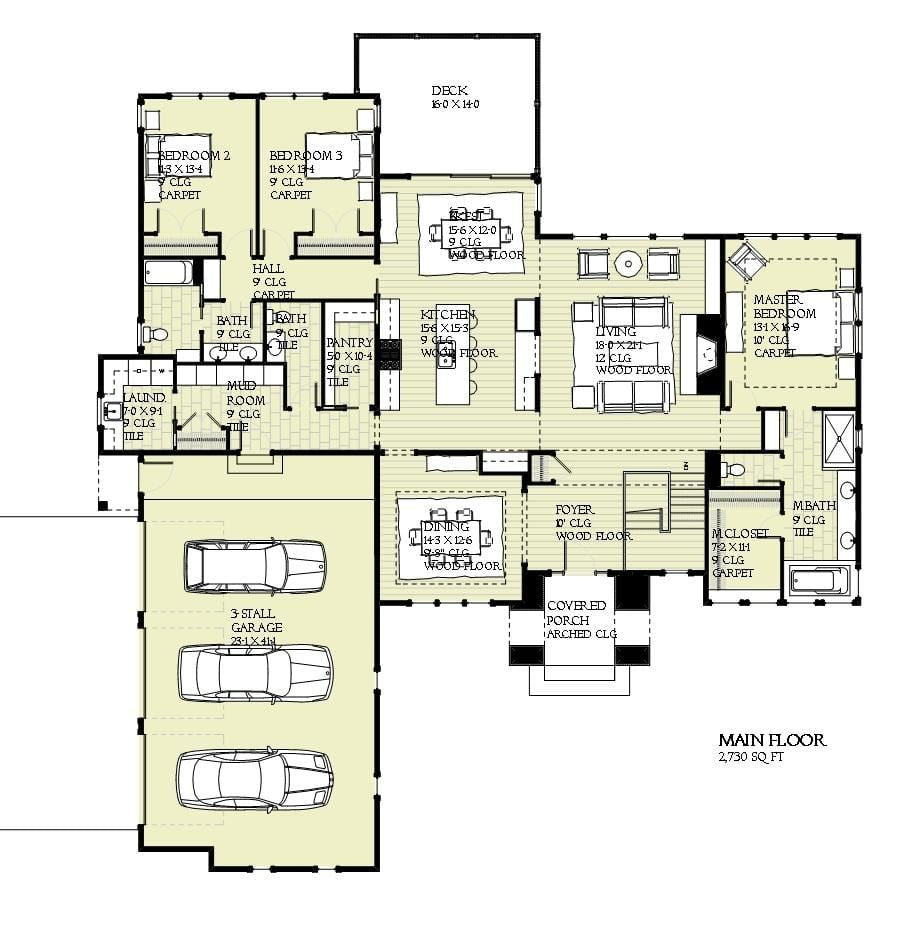

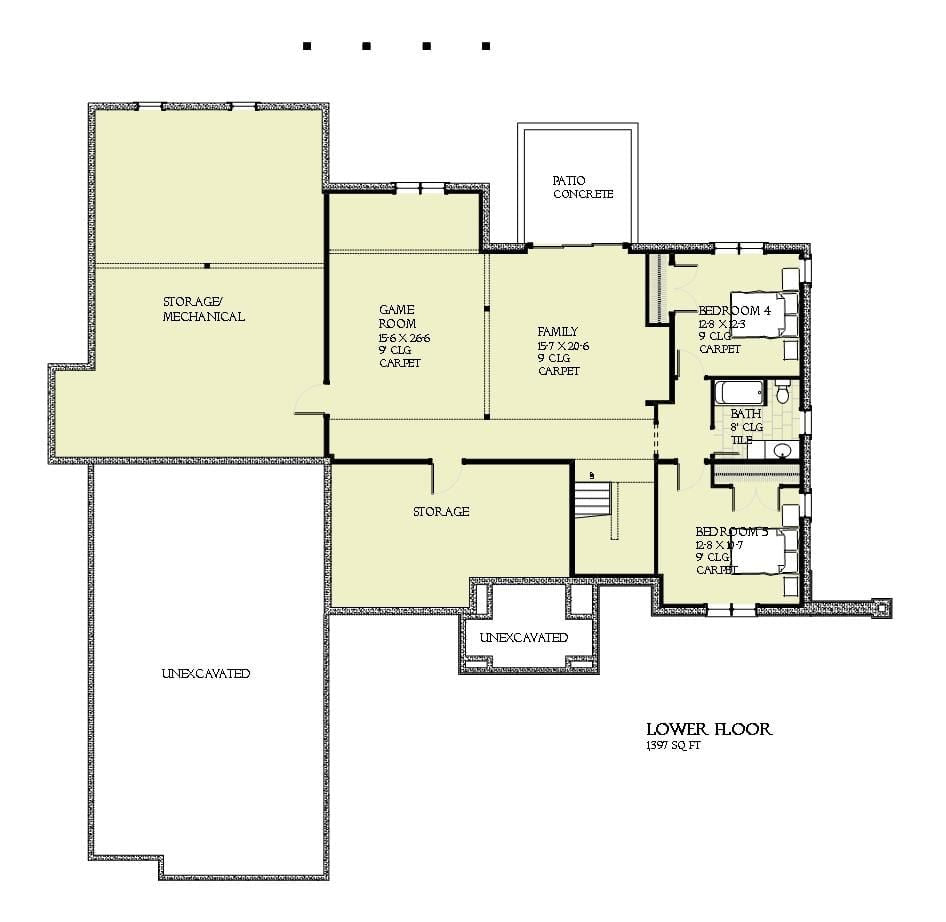

Detailed Floor Plans

All room and wall dimensions, ceiling heights, and overall details of each room in your home
Window and door sizes
Used for project estimates and on-site framing and construction

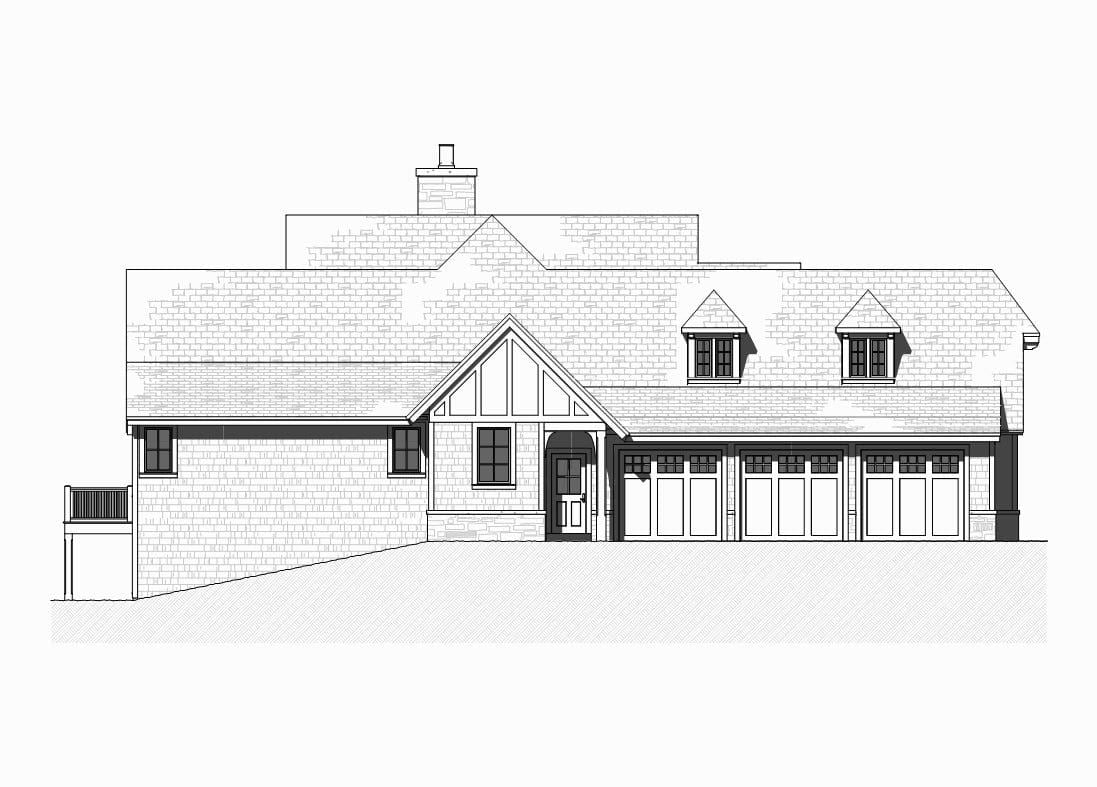

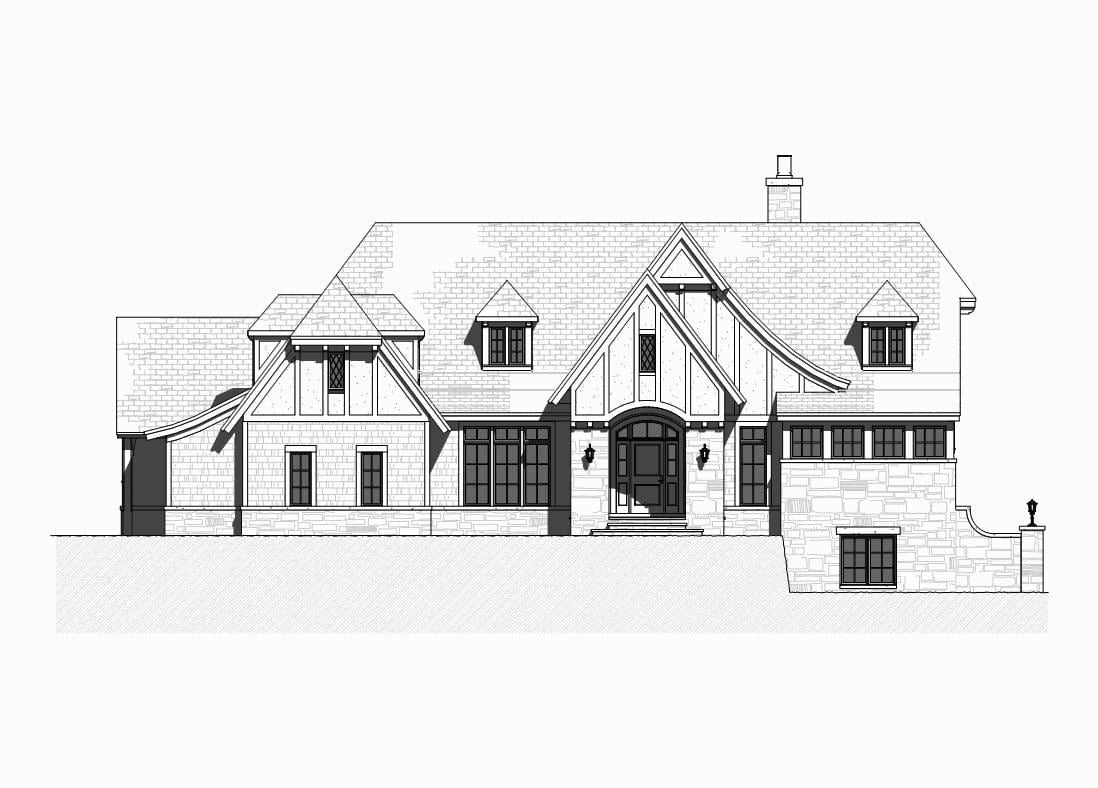

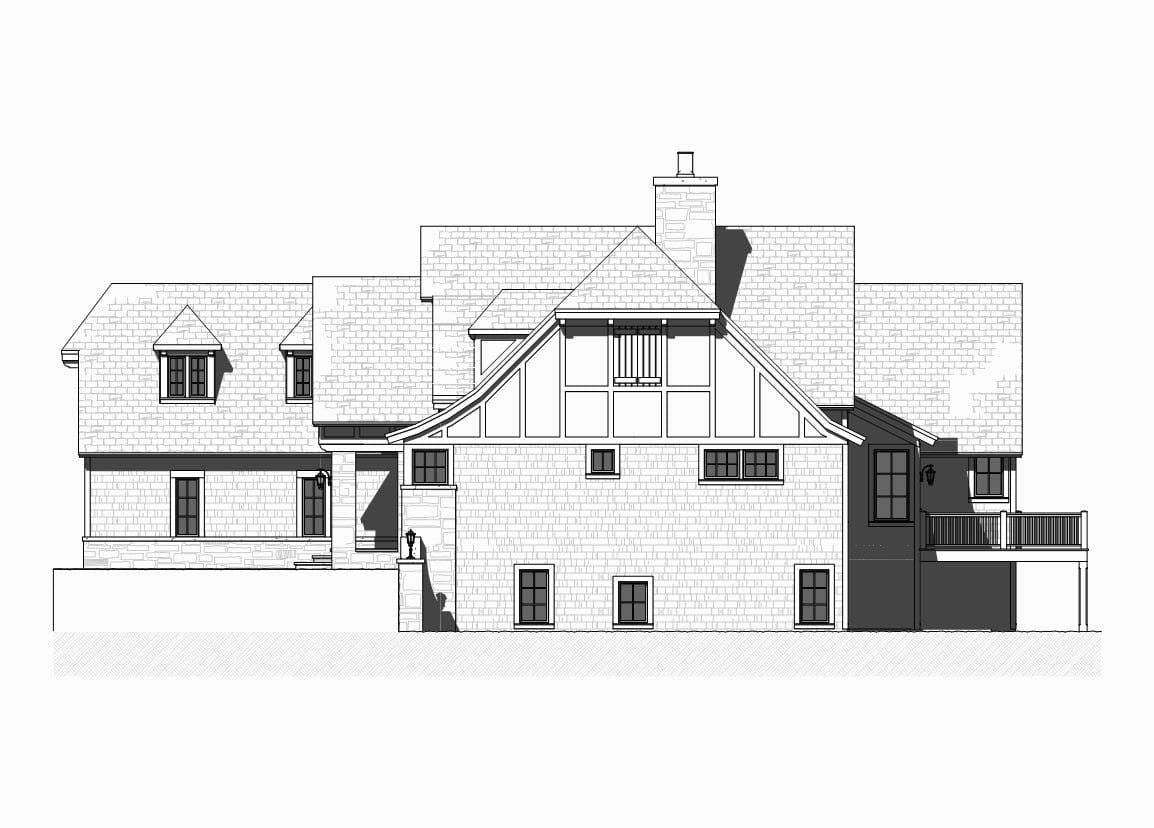

Exterior Elevations

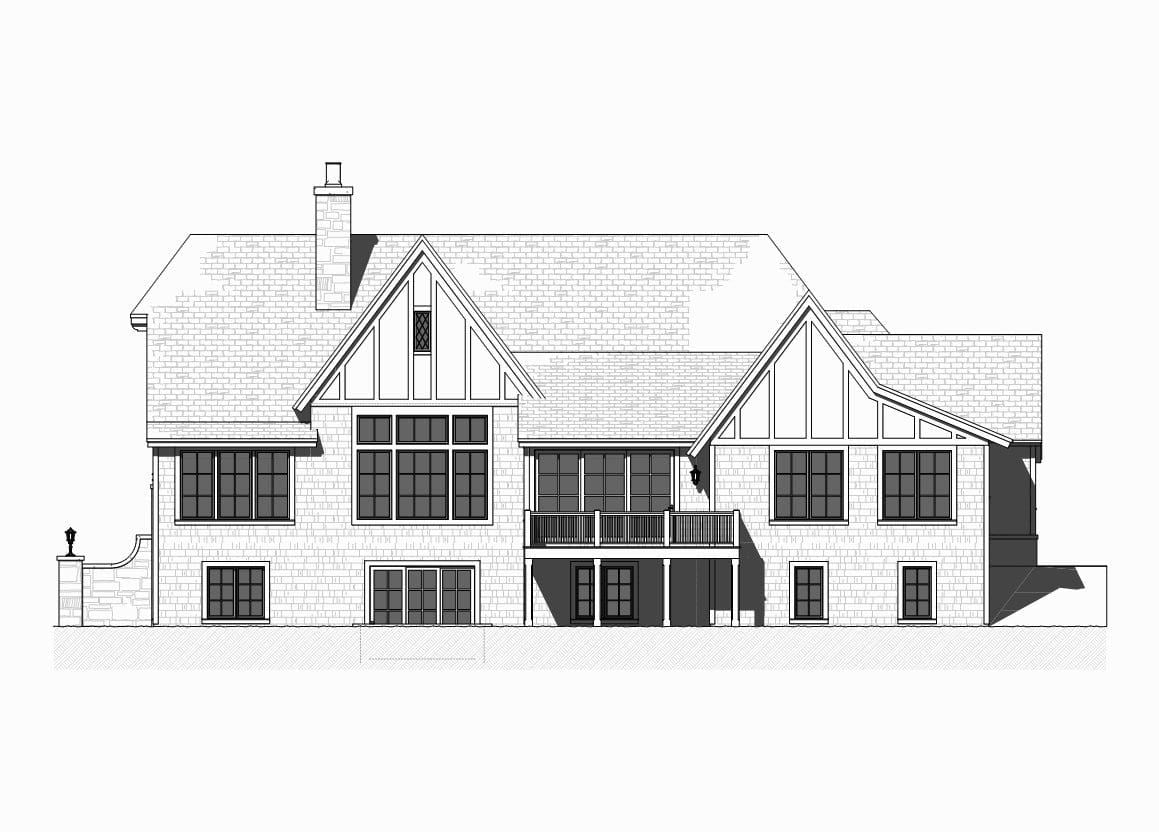

Front, sides, and rear elevations
Illustrates exterior materials, details, wall heights & dimensions, siding and trim details, plus recommended door styles

Building Construction Details

Building and/or wall sections
Eave and other exterior details/specs
Roof plan with overhangs and pitch
Exterior door, window trim, and garage door details

Not included:

Structural engineering: this varies greatly by each area of the country, municipality, and soil conditions. We recommend having your builder work with a local structural engineer if necessary to complete these for your home.

HVAC, Plumbing, or Electrical Plans: These are very user specific and its recommended you work directly with your builder and his sub-contractors to tailer a system and plan to your specific needs and budget.

Modifications

Need to make modifications to adapt the Sherwood plan to fit your family needs, property, or layout desires?

Whatever you need, submit your request in a few simple steps, and we will provide a free quote.

Request Modifications

SketchPad House Plans Sherwood

$2,875.00

Key Specifications

Heated SqFt | 4,127

Bedrooms | 5

Bathrooms | 3.5

Floors | 1

Garage | 3 stall

Sherwood House Plan Description

4100 Square Foot 5-Bedroom New American Tudor House Plan with Split Bedrooms and Home Office

This 5 Bedroom New American Tudor House Plan has a walkout basement and classic aesthetic combined with contemporary features. Enter the home through a spacious foyer, and make your way to the formal dining area and open staircase. Relax in the living room, complete with raised ceiling and fireplace. The master suite, complete with large bathroom, is located off the living room, while two additional bedrooms and a full bath are located conveniently on the main floor. The garage entry has plenty of storage, a well-placed laundry room, and a walk-in pantry. The basement plan includes two guest bedrooms and a full bath, along with a game and family room, and expansive storage area.

Heated Space

Total Heated Area: 4,127 Sq Ft

First Floor: 2730 Sq Ft

Second Floor: Sq Ft

Third Floor: Sq Ft

Lower Floor: 1397 Sq Ft

Beds and Baths

5 Bedrooms

3.5 Bathrooms

1 Floor(s)

Exterior Dimensions

Width:

76'-0"

Depth:

77'-7"

Height:

28'-8"

*Height taken from front elevation

as drawn to highest roof peak

Garage

3 car

Structure

Foundation: Daylight Basement

Roof Framing: Truss + Stick

Main Roof Pitch: 12/12 Main

Wall Framing:

Ceiling Heights

Main Floor: 9'-0"

Upper Floor:

Lower Floor: 9'-0"

Bonus Floor:

What's Included

All documents necessary to build your home.
